Electrochemical sensors are devices that detect and measure chemical substances by converting a chemical reaction into an electrical signal. They work by placing electrodes in contact with a sample, triggering a reaction at the electrode surface that produces a measurable current, voltage, or impedance change proportional to the concentration of the target analyte. The sections below cover how they function, what types exist, how they are made, and where they appear in medical devices.
How do electrochemical sensors detect chemical signals?
Electrochemical sensors detect chemical signals by using electrodes to drive or monitor a reaction at the interface between the electrode surface and a liquid sample. When a target molecule interacts with the electrode, it either gains or loses electrons, generating an electrical signal. That signal is measured and correlated to the concentration of the analyte in the sample.
The detection process depends on the electrochemical technique being used. In amperometric sensors, a fixed potential is applied and the resulting current is measured. In potentiometric sensors, no current flows; instead, the sensor measures the voltage difference that builds up between a working electrode and a reference electrode. Impedimetric sensors measure changes in electrical impedance caused by binding events at the electrode surface.
Most electrochemical sensors share a common three-electrode architecture: a working electrode where the reaction occurs, a reference electrode that provides a stable potential baseline, and a counter electrode that completes the circuit. The working electrode is typically modified with a selective layer, such as an enzyme, antibody, or ion-selective membrane, that ensures only the target analyte triggers a response. This selectivity is what makes electrochemical sensors practical for complex biological samples like blood, urine, or interstitial fluid.
What are the main types of electrochemical sensors?
The main types of electrochemical sensors are amperometric, potentiometric, voltammetric, and impedimetric sensors. Each type is defined by the electrical parameter it measures and the detection principle it uses. The appropriate type depends on the target analyte, the required sensitivity, and the application environment.
- Amperometric sensors measure current produced by the oxidation or reduction of an analyte at a fixed applied potential. Glucose sensors used in blood glucose monitoring are the most widely deployed example of this type.
- Potentiometric sensors measure voltage at equilibrium without drawing current. Ion-selective electrodes for sodium, potassium, or pH measurement are potentiometric in operation and are common in clinical chemistry analyzers.
- Voltametric sensors apply a varying potential and measure the resulting current as a function of voltage. This technique can distinguish multiple analytes in a single measurement, making it useful for multiplexed detection.
- Impedimetric sensors measure changes in electrical impedance, often caused by molecular binding at the electrode surface. They are frequently used in biosensor research and point-of-care immunoassay platforms where label-free detection is an advantage.
Within these categories, biosensors represent a specialized subclass where a biological recognition element such as an enzyme, antibody, or nucleic acid is immobilized on the electrode surface to provide analyte-specific detection. Enzymatic biosensors are the most mature commercially, while affinity-based biosensors using antibodies are increasingly relevant in diagnostic platforms.
What materials are electrochemical sensors made from?
Electrochemical sensors are made from a combination of substrate materials, conductive electrode materials, and functional surface coatings. The choice of materials directly determines sensor sensitivity, selectivity, stability, and manufacturability. For medical applications, biocompatibility of all skin-contact or fluid-contact materials is an additional requirement.
Substrate materials
The substrate supports the electrode structure and must be compatible with the manufacturing process. Common substrates include polyethylene terephthalate (PET), polyimide, and paper for flexible or disposable sensors.
Electrode materials
Carbon-based materials, including carbon paste, graphite, and carbon black inks, are widely used because of their broad electrochemical window, low cost, and compatibility with screen printing. Silver and silver chloride are standard for reference electrodes and for sensors requiring stable, well-defined potentials. Gold and platinum are used in high-performance applications where surface chemistry control and low background noise are critical, though their cost limits use in disposable formats.
Functional coatings and biorecognition layers
The electrode surface is often modified with a selective layer to enable specific analyte detection. Enzymes such as glucose oxidase are immobilized on the working electrode surface in enzymatic biosensors. Antibodies, aptamers, or molecularly imprinted polymers serve similar roles in affinity-based sensors. Conductive polymers and nanomaterials are also used to enhance signal amplification and surface area.
How are electrochemical sensors manufactured at scale?
Electrochemical sensors are manufactured at scale primarily through screen printing, which deposits conductive and functional inks onto flexible substrates in a defined pattern. Screen printing is well-suited to high-volume production because it is fast, reproducible, and compatible with roll-to-roll processing. After printing, sensors undergo converting steps, functional coating application, and quality inspection before packaging.

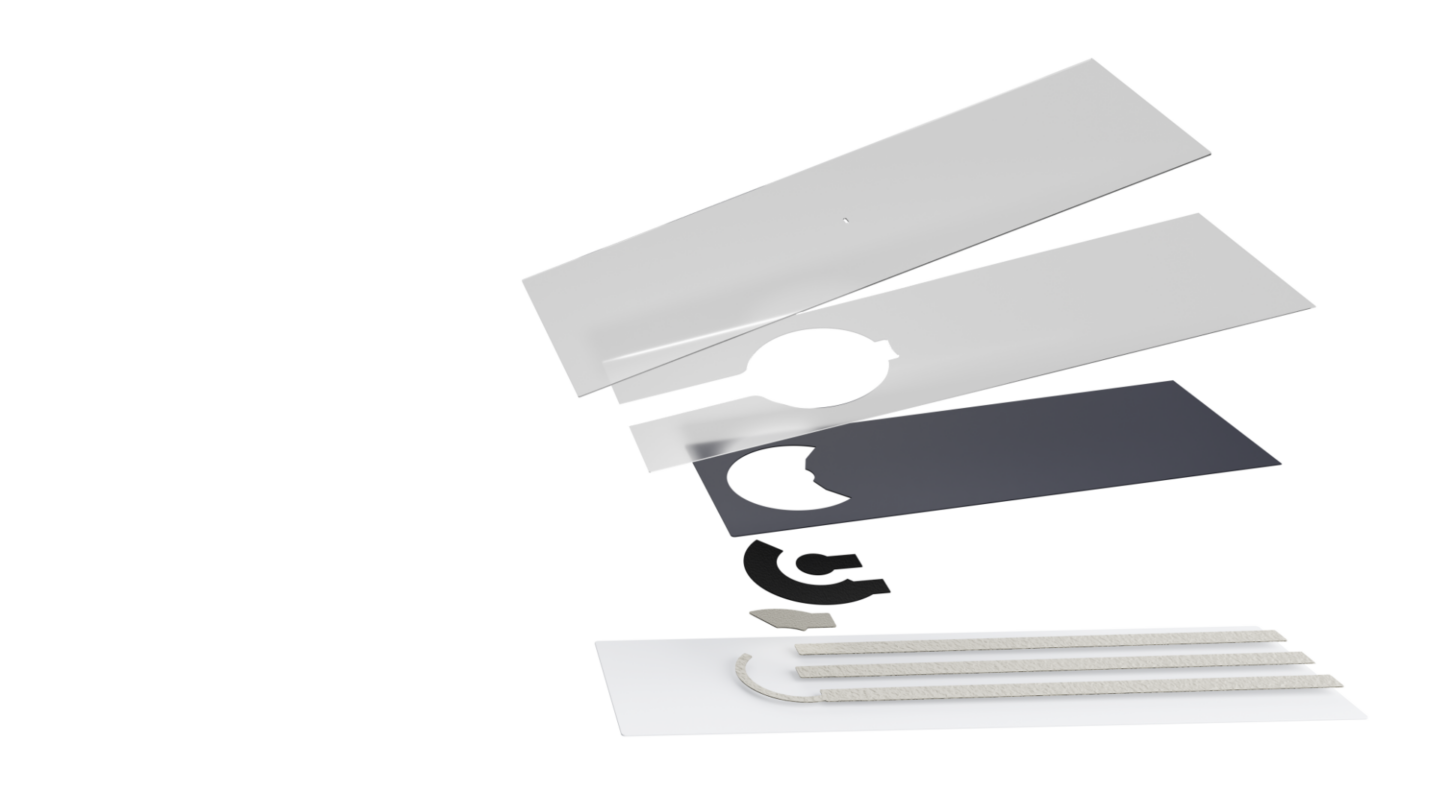

The manufacturing sequence for a typical screen-printed electrochemical sensor follows a defined process:
- Substrate preparation: The base film or sheet is cleaned and prepared to ensure consistent ink adhesion.
- Screen printing of electrode layers: Conductive inks, typically carbon or silver-based, are printed in successive layers to form the working, reference, and counter electrodes. Each layer is cured before the next is applied. Dielectric ink is printed as an insulating layer over connection tracks, leaving only the active electrode areas exposed to the sample.
- Functional layer application: Enzyme, reagent, or other biorecognition materials are deposited onto the working electrode, often by dispensing or printing under controlled conditions. This step may require a cleanroom environment to prevent contamination.
- Converting and singulation: Printed sheets are laminated with additional layers if required, then cut to final sensor geometry using mechanical or laser cutting.
- Inspection and testing: Electrical and functional testing confirms that each sensor meets defined performance specifications before release.
- Packaging: Sensors are packaged, often under a controlled atmosphere, to protect functional layers from humidity and degradation during storage.
Biofunctionalization steps, where biological recognition elements are applied, require particular process control. Screentec operates an ISO 5 white room for electrochemical characterization and small-scale biofunctionalization, supporting customers who require this level of environmental control during sensor development and early manufacturing.
Where are electrochemical sensors used in medical devices?
Electrochemical sensors are used across a broad range of medical devices wherever quantitative chemical measurement is needed from a biological sample. Their primary applications are in in vitro diagnostics, continuous glucose monitoring, point-of-care testing platforms, and wearable biosensors for metabolite or biomarker detection.
In in vitro diagnostics, electrochemical sensors form the detection core of devices that measure analytes in blood, urine, saliva, or other body fluids outside the body. Blood glucose test strips are the most familiar example, but the same principles apply to devices measuring lactate, creatinine, uric acid, electrolytes, and coagulation markers.
Point-of-care platforms use electrochemical sensors to deliver laboratory-quality measurements at the patient bedside or in a primary care setting. Microfluidic cartridges that route a small sample volume over a printed electrode array are a common format for these devices. The combination of screen-printed electrodes and microfluidic channels enables compact, disposable, single-use devices that require no specialist operator training.
Wearable biosensors represent a growing application area, where electrochemical sensors are integrated into skin-contact patches or wristbands to monitor analytes continuously or on demand. Sweat-based sensors that measure electrolytes or metabolites during physical activity, and transdermal glucose monitoring systems, are active development areas within this category.
Electrochemical sensors also appear in environmental monitoring and food safety testing, though medical diagnostics remains the largest and most regulated application domain. For medical device manufacturers developing IVD or point-of-care products that require screen-printed electrochemical sensors, the manufacturing process, material selection, and biofunctionalization approach all require a partner experienced in regulated production environments.
If you are developing an electrochemical sensor for a diagnostic or point-of-care application and need a manufacturing partner with experience in screen-printed electrode structures and ISO 13485-certified production, discuss your project with Screentec.
Frequently Asked Questions
How do I choose the right type of electrochemical sensor for my application?
Start by defining your analyte, the required detection range, and the sample matrix your sensor will encounter. Amperometric sensors are generally the best fit for quantitative detection of small molecules like glucose or hydrogen peroxide, while potentiometric sensors excel at continuous ion monitoring in complex fluids. Impedimetric designs are worth considering when you need label-free detection of large biomolecules. From there, narrow your choice based on practical constraints such as power availability, device form factor, and whether calibration can be performed in the field or must be factory-set.
What role does electrode geometry play in sensor performance, and how is it optimized during development?
Electrode geometry directly affects signal magnitude, mass transport of the analyte to the electrode surface, and the ratio of signal to background noise. Smaller electrodes generate smaller absolute currents but can exhibit faster response times and lower detection limits under certain conditions. The geometry also determines how the sensor interacts with the sample volume available, which is critical in microfluidic or minimal-sample applications. Optimization typically involves iterative fabrication and electrochemical characterization of different geometries, and decisions made here have direct implications for printability and yield in volume manufacturing — making it important to evaluate geometry choices against both performance and process constraints simultaneously.
What are the most common mistakes teams make when transitioning an electrochemical sensor from prototype to production?
The most frequent mistake is locking in material and process choices during prototyping without evaluating their manufacturability at scale. For example, a surface functionalization method that works reliably on a bench may be impossible to control reproducibly in a high-throughput printing process. Other common pitfalls include underestimating the impact of ink or substrate batch variability on sensor performance and delaying engagement with a manufacturing partner until after design freeze — at which point costly redesigns may be unavoidable. Involving manufacturing expertise early, ideally during feasibility or early prototype stages, significantly reduces these risks.
How is sensor selectivity validated against real-world sample matrices rather than just buffer solutions?
Selectivity validation should be conducted using samples that closely replicate the complexity of the intended matrix — whole blood, sweat, environmental water, or food extracts, depending on the application. This involves spiking known concentrations of common interferents into the real matrix and measuring the sensor’s response relative to the target analyte. Regulatory submissions for medical devices typically require this data in a structured format, so building interferent testing into your development plan from the start avoids gaps later. Working with a development partner experienced in IVD or POC validation can help ensure the testing protocol meets both technical and regulatory expectations.
What does ISO 13485 certification require from an electrochemical sensor manufacturer, and why does it matter for my project?
ISO 13485 requires that a manufacturer operate a documented quality management system covering design controls, supplier qualification, process validation, traceability, and corrective action procedures — all specifically tailored to medical device production. For electrochemical sensor components, this means every process variable that affects device performance, from ink formulation to curing conditions, must be controlled and documented. For device manufacturers sourcing sensor components, working with an ISO 13485-certified supplier simplifies your own regulatory submission and provides documented evidence that the component was produced under a controlled quality system, which auditors and notified bodies expect to see.
How can shelf life and stability challenges be addressed for disposable biosensors that use enzyme-based recognition elements?
Enzyme stability is primarily managed through the choice of immobilization chemistry, the use of stabilizing additives, and controlled packaging conditions including desiccation and inert atmosphere sealing. Accelerated aging studies, conducted at elevated temperatures, are used to predict real-time shelf life and identify formulation weaknesses early. It is important to test stability under the full range of conditions the product will encounter during storage and shipping, not just ideal laboratory conditions, since temperature excursions during transport are a common real-world failure mode.
